1. 1. Theory and Operation of Secondary Reformers By: Gerard B. Hawkins Managing Director, CEO

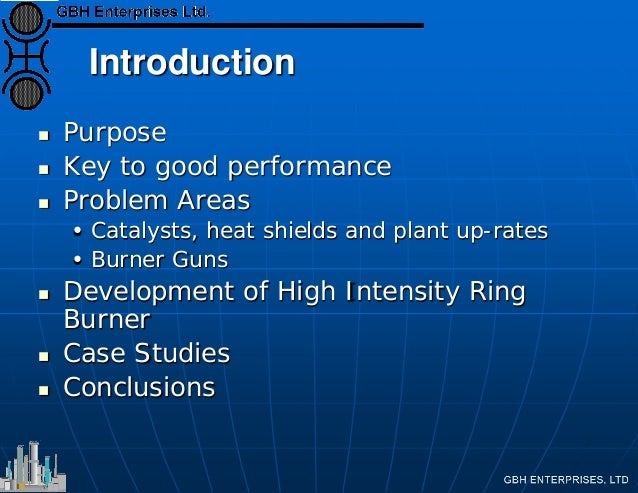

2. 2. Introduction  Purpose  Key to good performance  Problem Areas • Catalysts, heat shields and plant up-rates • Burner Guns  Development of High Intensity Ring Burner  Case Studies  Conclusions

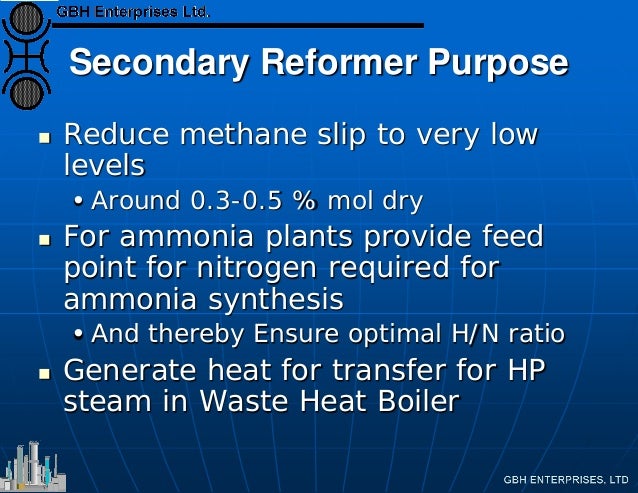

3. 3. Secondary Reformer Purpose  Reduce methane slip to very low levels • Around 0.3-0.5 % mol dry  For ammonia plants provide feed point for nitrogen required for ammonia synthesis • And thereby Ensure optimal H/N ratio  Generate heat for transfer for HP steam in Waste Heat Boiler
4. 4. Typical Reforming Configuration Steam Secondary Reformer Steam Steam + Gas Steam Reformer Air / Oxygen500°C 780°C 450°C 1200°C 950°C 10% CH 4 0.5% CH 4
5. 5. Secondary Reformer Mechanical Details Refractory lined pressure shell Fixed Catalyst bed in lower region Combustion section in upper region Water jackets to keep shell cool Catalyst supported on brick arch
6. 6. Keys to Good Performance  Three key components – Burner Design – Mixing Volume – Catalyst All must be designed correctly to maximize performance Air/Oxygen Steam Reformer Effluent To Waste Heat Boiler

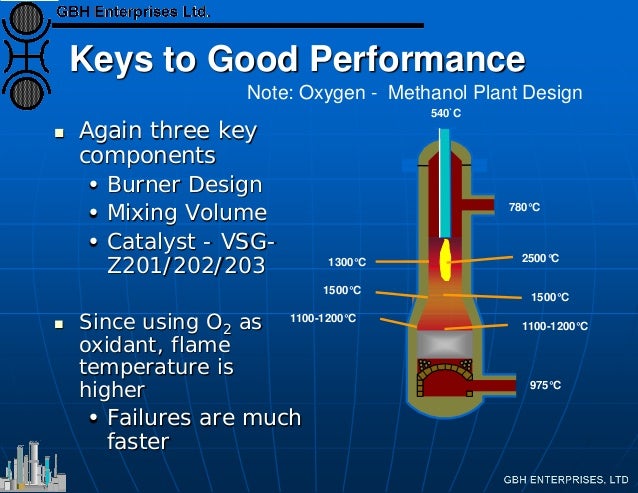

7. 7. Keys to Good Performance  Again three key components • Burner Design • Mixing Volume • Catalyst - VSG- Z201/202/203  Since using O2 as oxidant, flame temperature is higher • Failures are much faster 780°C 540`C 2500°C 1500°C 1100-1200°C 975°C 1500°C 1100-1200°C 1300°C Note: Oxygen - Methanol Plant Design
8. 8. Secondary Reformer Operation •Burner determines mixing performance •Air injected at high velocity •Forces mixing of air and process gas •Combusts only 20% of process gas •Must also mix in other 80% •Should achieve a uniform mixture •Catalyst bed can affect flow patterns
9. 9. Secondary Reformer Combustion Gas feed very hot > 630oC Gas feed contains hydrogen Gas ignites automatically Autoignition >615oC No need for spark or pilot Must maintain gas above 615oC

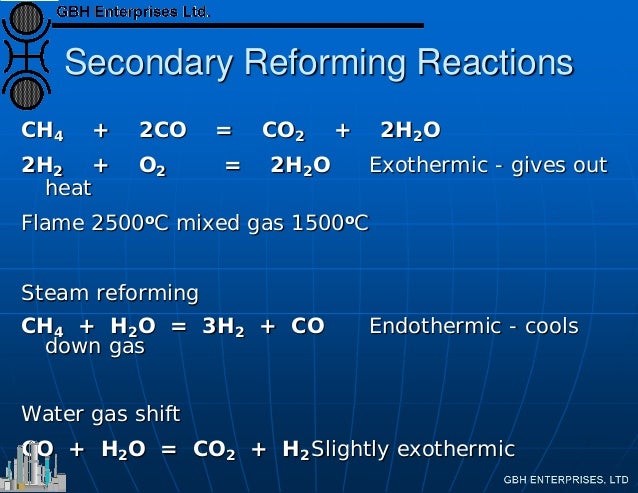

10. 10. Secondary Reforming Reactions CH4 + 2CO = CO2 + 2H2O 2H2 + O2 = 2H2O Exothermic - gives out heat Flame 2500oC mixed gas 1500oC Steam reforming CH4 + H2O = 3H2 + CO Endothermic - cools down gas Water gas shift CO + H2O = CO2 + H2Slightly exothermic

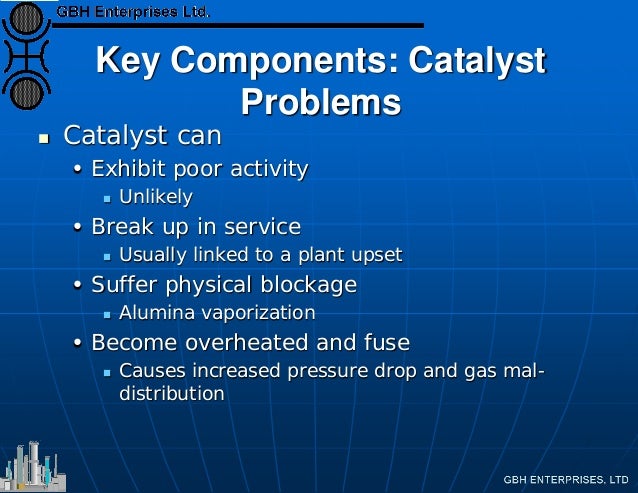

11. 11. Key Components: Catalyst Problems  Catalyst can • Exhibit poor activity  Unlikely • Break up in service  Usually linked to a plant upset • Suffer physical blockage  Alumina vaporization • Become overheated and fuse  Causes increased pressure drop and gas mal- distribution
12. 12. Key Components: Catalyst Activity  Catalyst is exposed to very high temperatures • Therefore nickel sinters  However once sintered it is very stable  Since catalyst operates at high temperature it is difficult to poison • Poisons will not stick • For ammonia plants will pass through to HTS and then LTS • For methanol plants will pass through to methanol synthesis loop
13. 13. Key Components: Catalyst Activity  VULCAN Series range of catalysts VSG-Z201/202/203 • Size - Mini and Standard plus Elephant • Use as a heat shield • Shape  5-Hole  Quadralobe  Quadralobe has +20% more activity than 4-hole • Well proven catalysts that are high stable and strong • Long lives

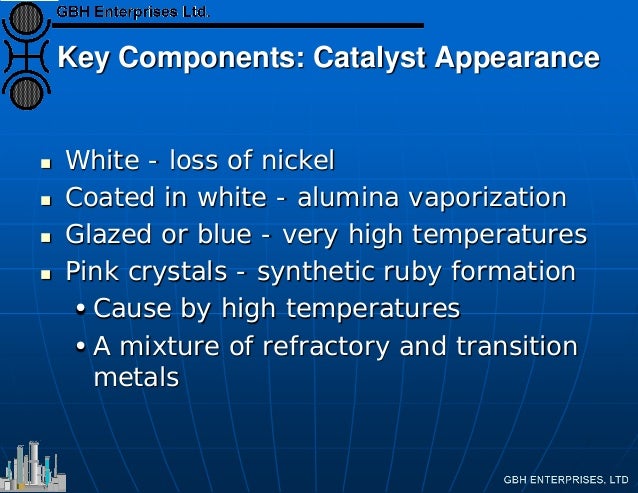

14. 14. Key Components: Catalyst Appearance  White - loss of nickel  Coated in white - alumina vaporization  Glazed or blue - very high temperatures  Pink crystals - synthetic ruby formation • Cause by high temperatures • A mixture of refractory and transition metals

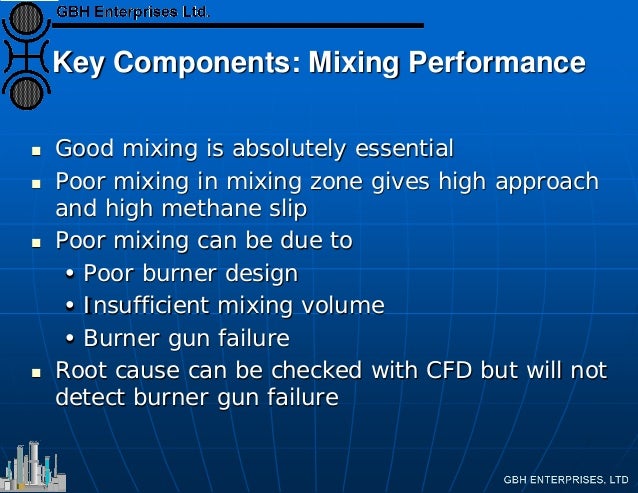

15. 15. Key Components: Mixing Performance  Good mixing is absolutely essential  Poor mixing in mixing zone gives high approach and high methane slip  Poor mixing can be due to • Poor burner design • Insufficient mixing volume • Burner gun failure  Root cause can be checked with CFD but will not detect burner gun failure

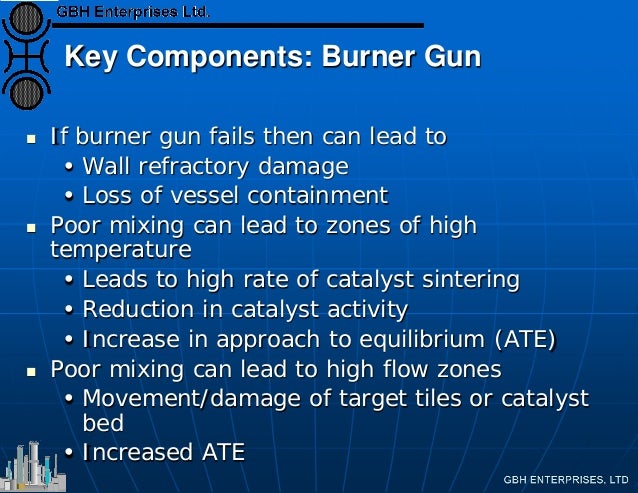

16. 16. Key Components: Burner Gun  If burner gun fails then can lead to • Wall refractory damage • Loss of vessel containment  Poor mixing can lead to zones of high temperature • Leads to high rate of catalyst sintering • Reduction in catalyst activity • Increase in approach to equilibrium (ATE)  Poor mixing can lead to high flow zones • Movement/damage of target tiles or catalyst bed • Increased ATE
17. 17. Key Components: Burner Guns  Standard Ammonia secondary burners have • Small number of large holes • Give poor mixing at high rates • High risk of overheating bed • Methane slip rises rapidly at high rates • Burner can be plant limit

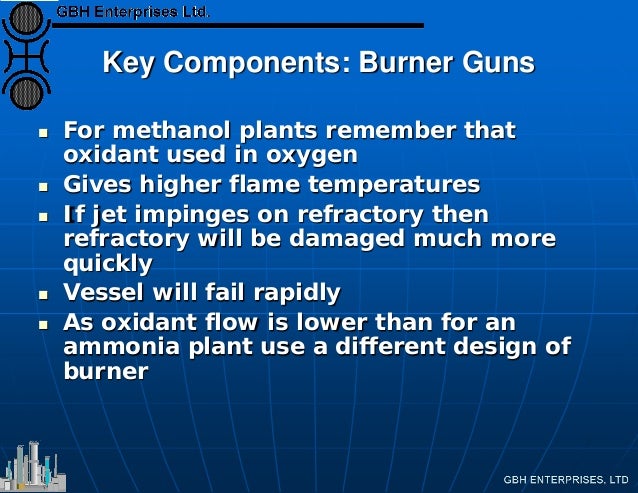

18. 18. Key Components: Burner Guns  For methanol plants remember that oxidant used in oxygen  Gives higher flame temperatures  If jet impinges on refractory then refractory will be damaged much more quickly  Vessel will fail rapidly  As oxidant flow is lower than for an ammonia plant use a different design of burner
19. 19. Key Components High Intensity Ring Burner  The high intensity burner differs from the standard burners • Large number of small holes: Small flames • High degree of mixing: Short mixing distance • Oxidant fed evenly into process gas: Good Mixing • Insensitive to rate increases • Used in ICI Ammonia plants

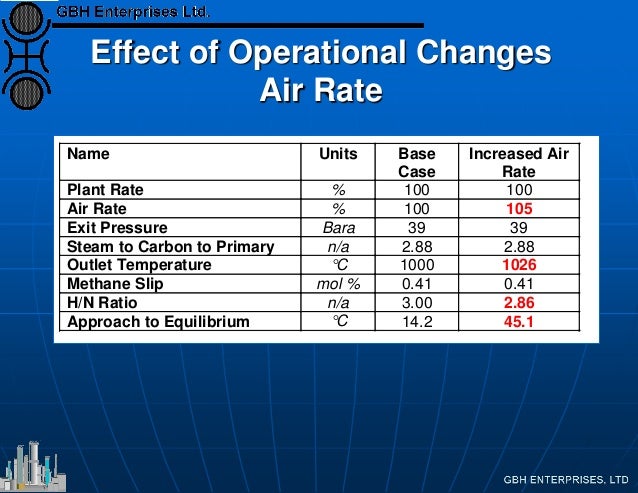

20. 20. Effect of Operational Changes Air Rate Name Units Base Case Increased Air Rate Plant Rate % 100 100 Air Rate % 100 105 Exit Pressure Bara 39 39 Steam to Carbon to Primary n/a 2.88 2.88 Outlet Temperature °C 1000 1026 Methane Slip mol % 0.41 0.41 H/N Ratio n/a 3.00 2.86 Approach to Equilibrium °C 14.2 45.1
21. 21. Effect of Operational Changes Pressure Name Units Base Case Increased Exit Pressure Plant Rate % 100 100 Air Rate % 100 100 Exit Pressure Bara 39 40 Steam to Carbon to Primary n/a 2.88 2.88 Outlet Temperature °C 1000 1000 Methane Slip mol % 0.41 0.41 H/N Ratio n/a 3.00 3.00 Approach to Equilibrium °C 14.2 11.3
22. 22. Effect of Operational Changes Steam to Carbon Ratio Name Units Base Case Decreased Steam to Carbon Plant Rate % 100 100 Air Rate % 100 100 Exit Pressure Bara 39 39 Steam to Carbon to Primary n/a 2.88 2.78 Outlet Temperature °C 1000 1002 Methane Slip mol % 0.41 0.41 H/N Ratio n/a 3.00 3.00 Approach to Equilibrium °C 14.2 12.2
23. 23. Key Components: Effect of Poor Mixing  Poor mixing can be illustrates by assuming a secondary reformer with a high zone of high air flow and a zone with low flow Name Temperature Methane slip Approach Poor Units Too much air Too little air o C 1034 902 Mol % 0.13 1.89 o C 10 10 Mixed 971 0.9 53 Good 957 0.62 10
24. 24. Key Components: Catalytic Heat Shield  Bed has to be protected against disturbances  Conventional target tiles or alumina lumps used  Even these can be moved  No longer required: can replace with active catalyst • Additional activity improves reforming performance  Use – VULCAN Series AST Advanced Support Technology • Large (35mm) 4-hole shape
25. 25. Key Components Use of CFD for Secondary Reformers  CFD modelling very good for secondary reformers  BUT time consuming and expensive  Building up a library of case studies  VULCAN Series Catalysts VSG-Z201/202/203 has extensive experience with CFD for secondary reformers • Troubleshooting problems • Designing burner guns • Validation of modifications • Optimization of catalyst quantity
26. 26. Catalyst Bed Air gun Recirculation zones Case Study 1: Insufficient Mixing Volume 1200 C 1400 C 1500 C 1600 - 2100 C Air Gun Catalyst Bed <1200 C 1400 C
27. 27. Case Study 1: Insufficient Mixing Volume
28. 28. Case Study 2 Burner Guns  In this case, secondary operated well up to 1450 mtpd  At rates above this, methane slip rose rapidly  Limiting further plant rate increases 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 1100 1200 1300 1400 1500 1600 1700 Plant rate, mtpd Methaneslip
29. 29. Catalyst Bed Recirculation Zone Burner Rings 1200 C 1300 C 1400 C 1500 C 1600 - 2100 C Catalyst Bed Burner Rings <1200 C Case Study 2: High Intensity Ring Burner
30. 30. Secondary Catalyst Conclusions  All three components must be designed correctly  If there are problems then can change catalyst type to high activity catalyst – VULCAN Series VSG-Z201/202/203 5-hole or Quadralobe • Can achieve large reduction volumes • Allows increase in mixing space • VSG-Z201/202/203 catalysts are well proven, stable and reliable  Good mixing above the catalyst bed is essential  Poor mixing gives high methane slip  Mixing performance critically depends upon burner

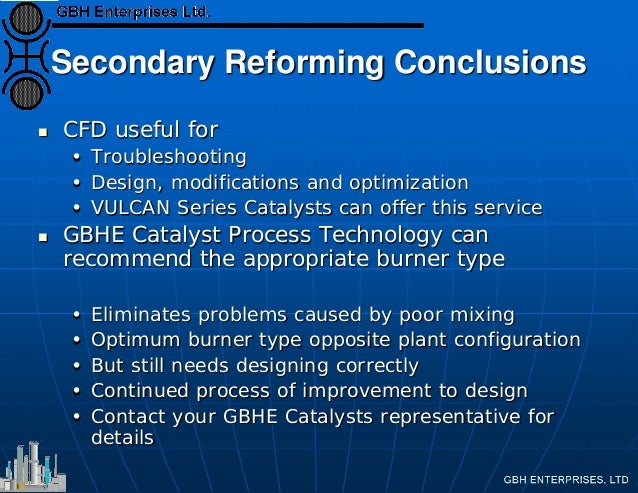

31. 31. Secondary Reforming Conclusions  CFD useful for • Troubleshooting • Design, modifications and optimization • VULCAN Series Catalysts can offer this service  GBHE Catalyst Process Technology can recommend the appropriate burner type • Eliminates problems caused by poor mixing • Optimum burner type opposite plant configuration • But still needs designing correctly • Continued process of improvement to design • Contact your GBHE Catalysts representative for details
